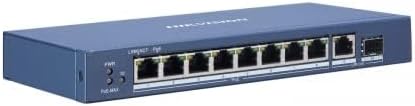

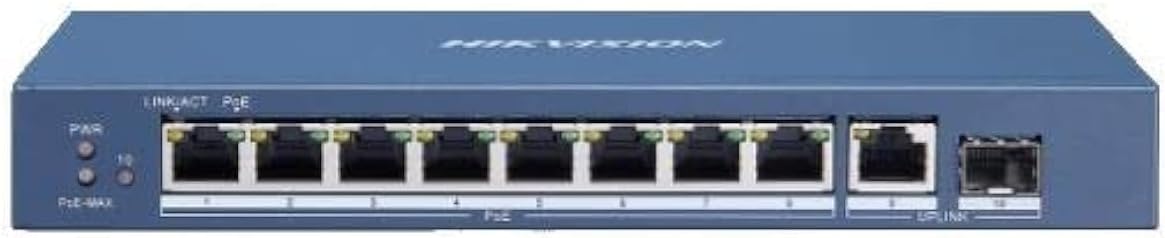

Hikvision - Switch Hikvision 10 Ports ~ 8 Gigabit PoE Ports ~ 1 RJ45 Gigabit Port ~ 1 SFP Port Fiber Optic Network Switch - DS-3E0510P-E/M

Network Parameters:

• Port Number: 8 × Gigabit PoE ports, 1 × Gigabit RJ45 port, 1 × Gigabit SFP fiber optic port
• Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive
• Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
• Forwarding Mode: Store-and-forward switching
• MAC Address Table: 4K
• Switching Capacity: 20Gbps
• Packet Forwarding Rate: 14.88 Mpps
• Internal Cache: 1.5 Mbits

PoE Power Supply:

• PoE Standard: IEEE 802.3af, IEEE 802.3at
• PoE Power Pin: Ethernet cable 1/2/3/6 provide power supply
• PoE Port: Ports 1 to 8
• Max. Port Power: 30W
• PoE Power Budget: 58W
• Max. Power Consumption: 65W

General:

• Shell: Metal material, no fan equipped
• Gross Weight: 0.635 kg (1.40 lbs)
• Net Weight: 1.366 kg (3.01 lbs)
• Dimensions: 217.8 mm × 27.8 mm × 108.6 mm (8.6" × 1.1" × 4.3")
• Operating Temperature: -10°C to 55°C (14°F to 131°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Operating Humidity: 5% to 95%
